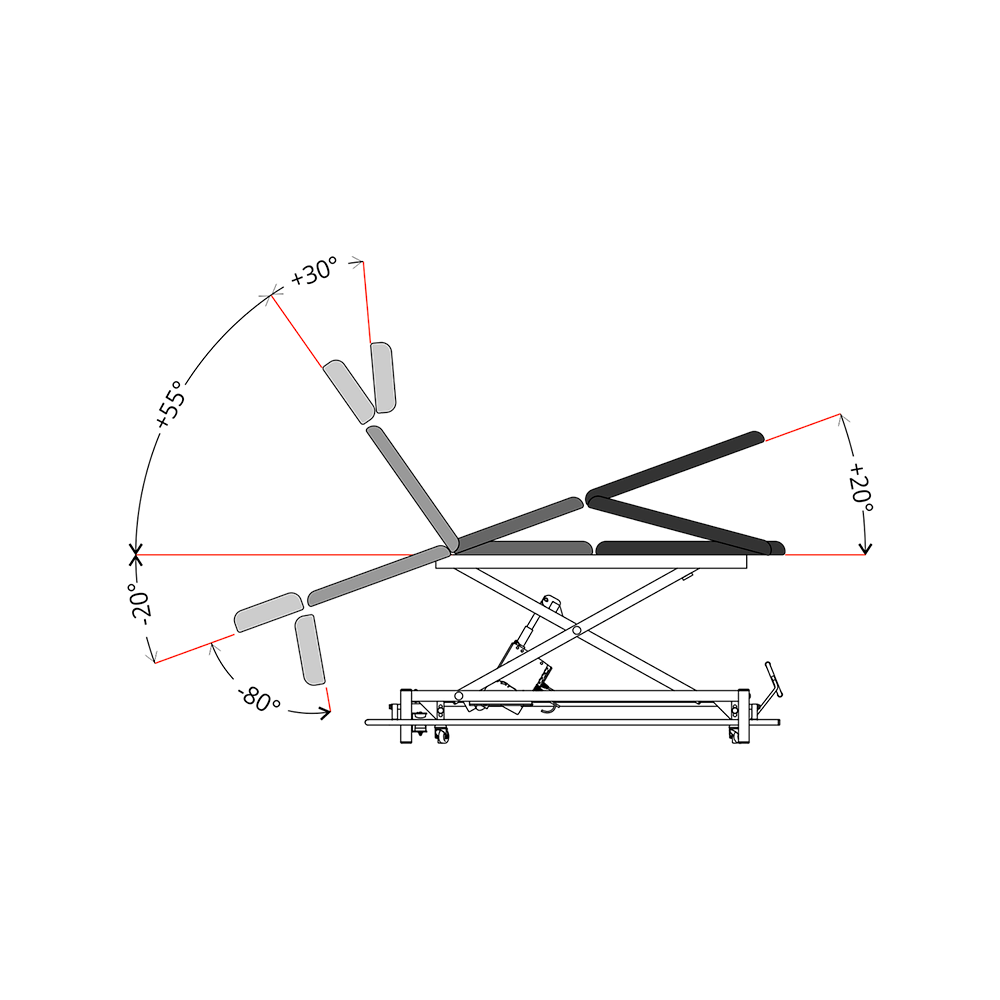

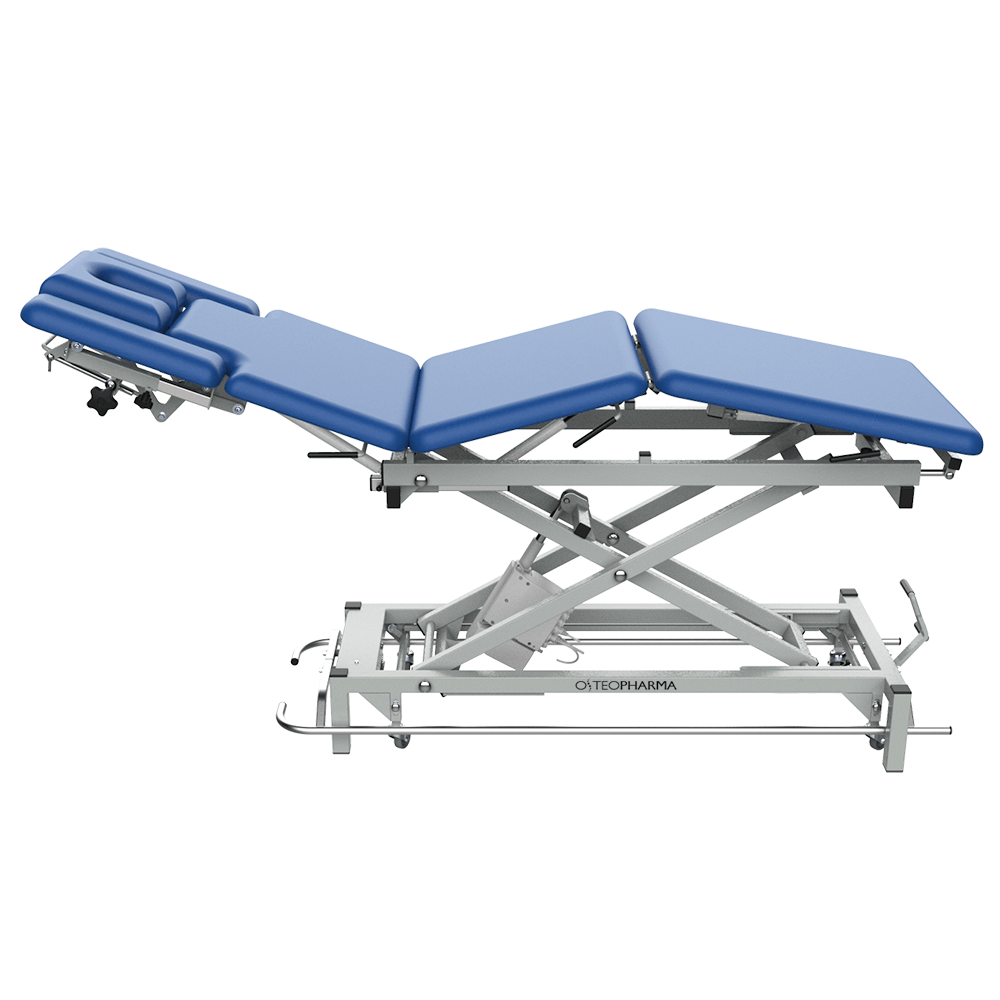

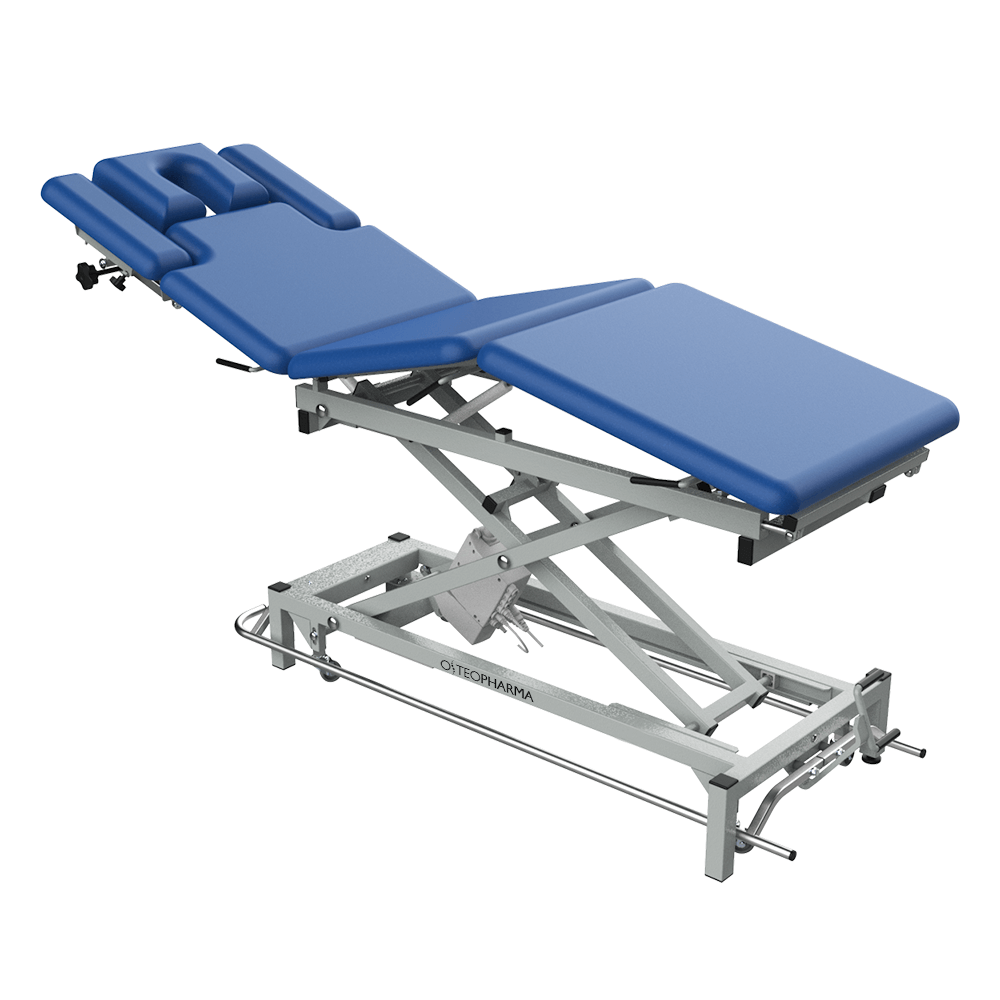

Electrically operated bed composed of 6 sections: a seat section, a leg section, a backrest with an adjustable headrest incorporated and a pair of armrests adjustable in both height and extension. The combination of the 3 main sections (backrests, seat and legs), allows the Trendelenburg and "kyphosis" positions to be assumed.

Prices include VAT. (Net list price: €2'450,82+VAT)

PRODUCT INFORMATION

• Floor covering in Decovin Basic® eco-leather
• Frame color to choose from: 9006 Light Aluminum; 9007 Dark Aluminum; 9010 White; 9005 Black; 7035 Light Gray "orange peel" effect

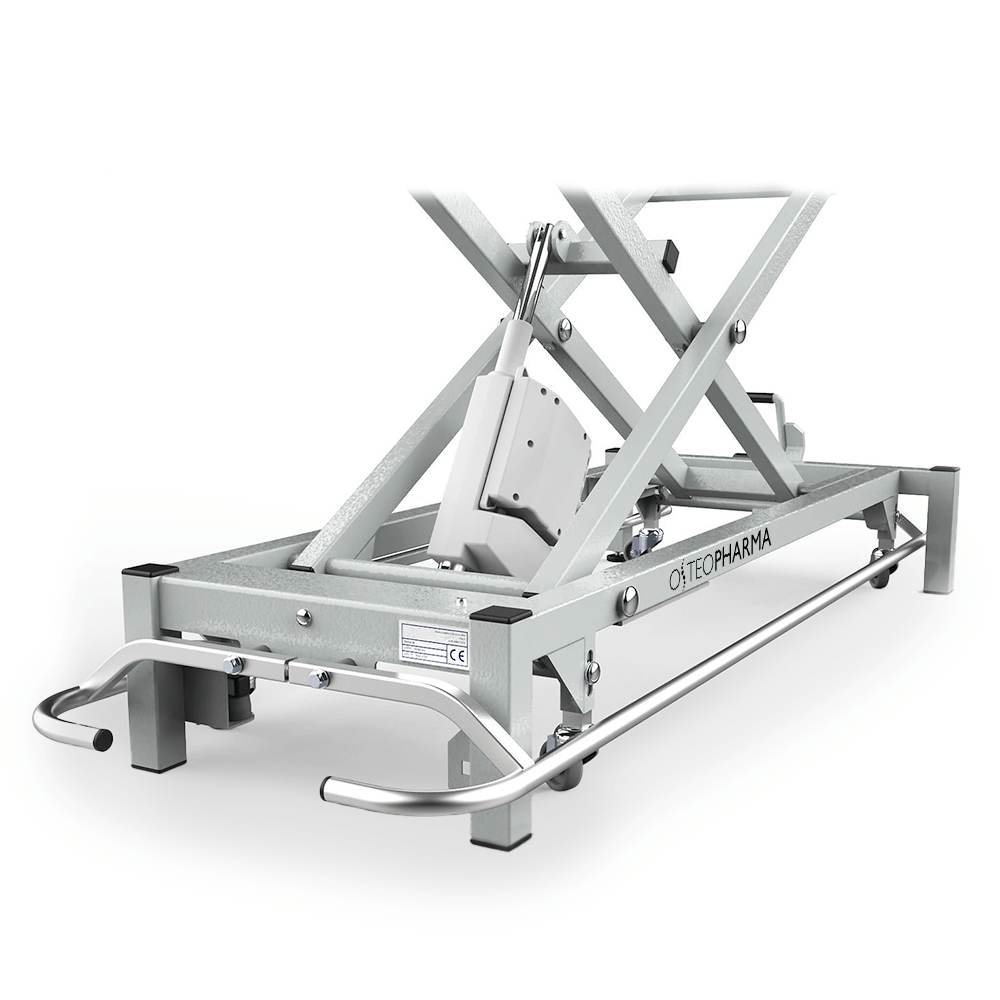

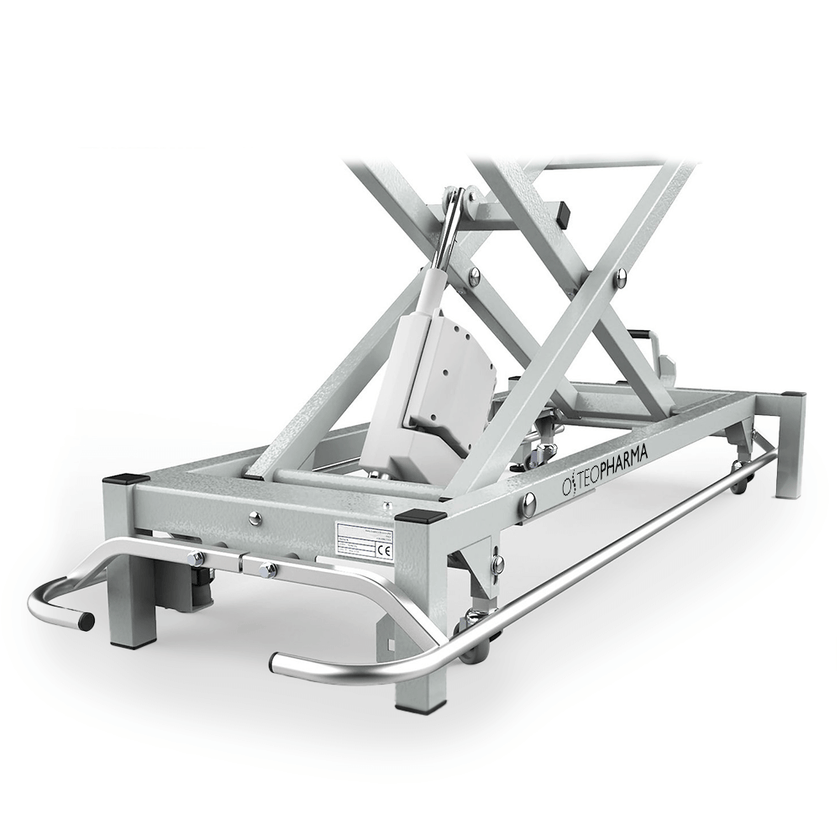

• Height adjustment with electric motor controlled by a peripheral bar in satin stainless steel.
• Wheeled system for moving, integrated into the cot. Consisting of 4 non-marking swivel wheels that can be inserted at any height. Designed exclusively for moving the cot alone without additional loads.
• Movement of the various levels via a lockable gas spring. Optionally, adjustment of the backrest and main seat via electric motors controlled by a floor button panel (+370€)
• Headrest with softer padding, independent manual adjustment.
• Pair of armrests integrated into the backrest, manually adjustable.
• Trendelenburg position and "kyphosis".
• Standard platform composed of 2 cm of rigid support and 2.5 cm of polyurethane foam. Other optional padding thicknesses: 3 cm (+50€); 4 cm (+90€); 5 cm (+125€).
• 100% Made in Italy.
• 24 month warranty.

TECHNICAL DATA

• No. of engines: 1 (3 optional)
• Standard dynamic load: 150 Kg
• Power supply current: 230 V - 50/60 Hz
• Operating voltage: 24V
• Protection class: IPX6

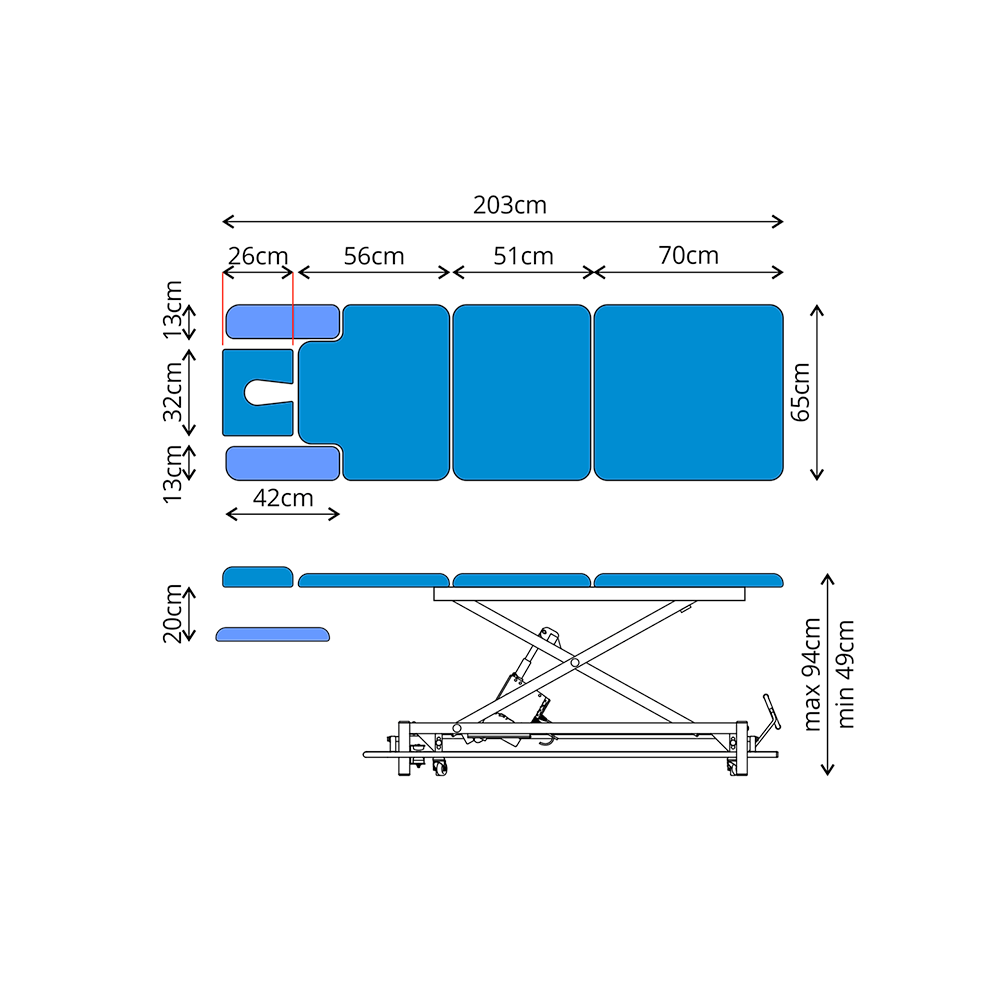

• Overall dimensions: 203x65 cm (+/- 0.5 cm).
• Minimum/maximum height: 49/94 cm.
• Total weight: 90 Kg.
• Frame structure: epoxy powder coated steel tubes.
• Floor padding density: 75 Kg/m3.
• Floor covering: Decovin Basic® with fire classification EUR: EN 1021 Part 1, GB: BS 5852 Part 0, EUR: EN 1021 Part 2, GB: BS 5852 Part 1
