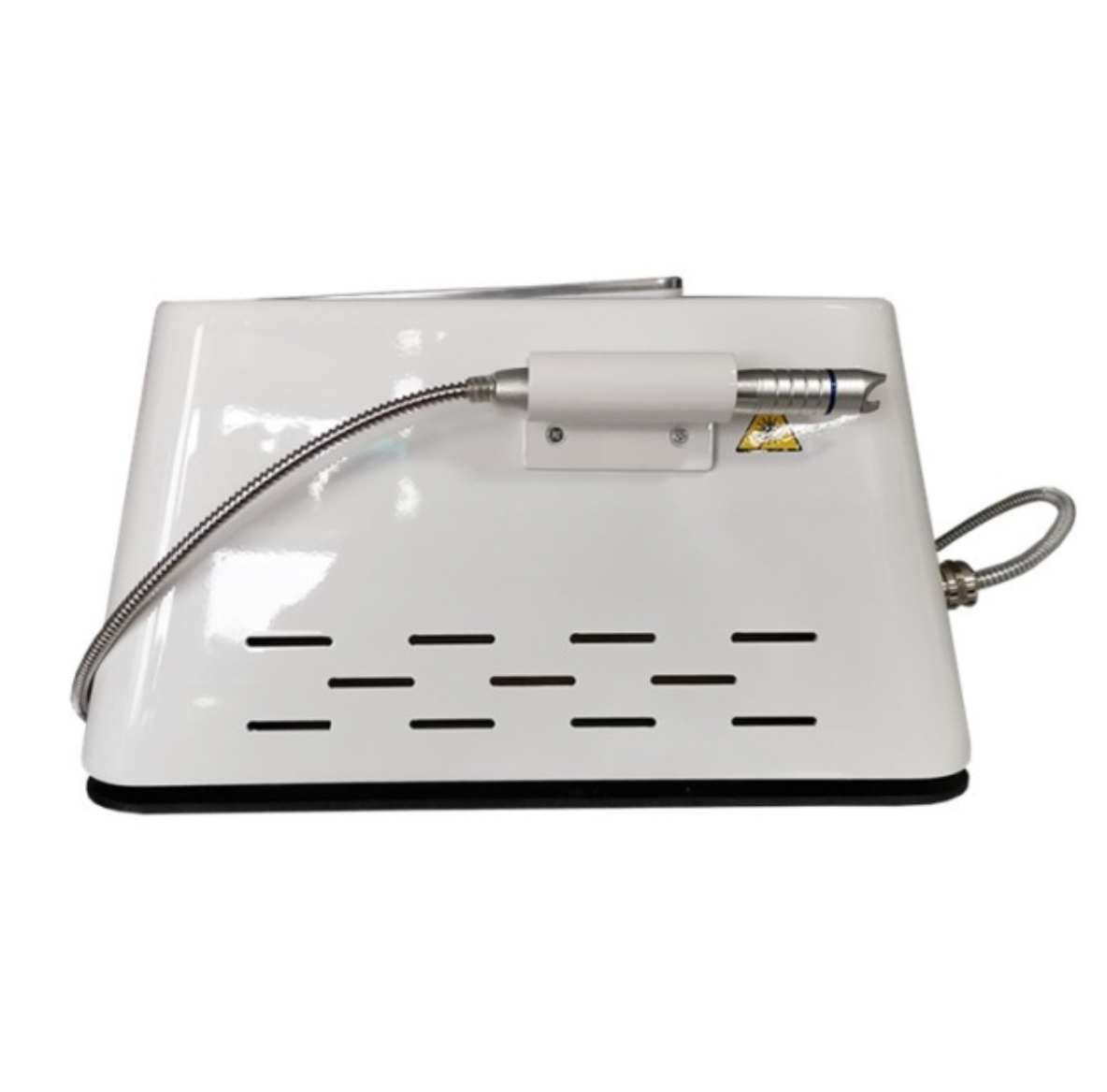

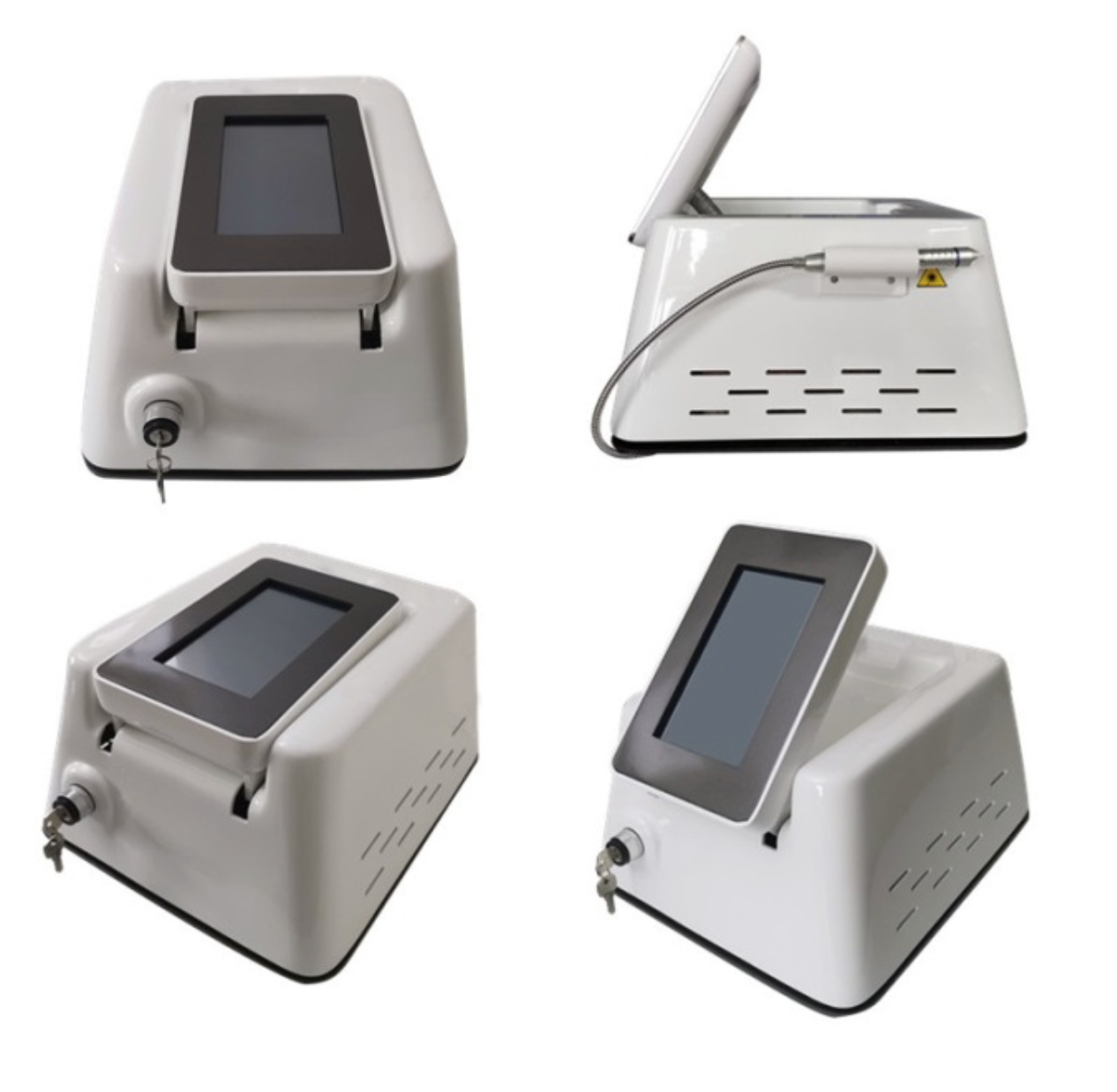

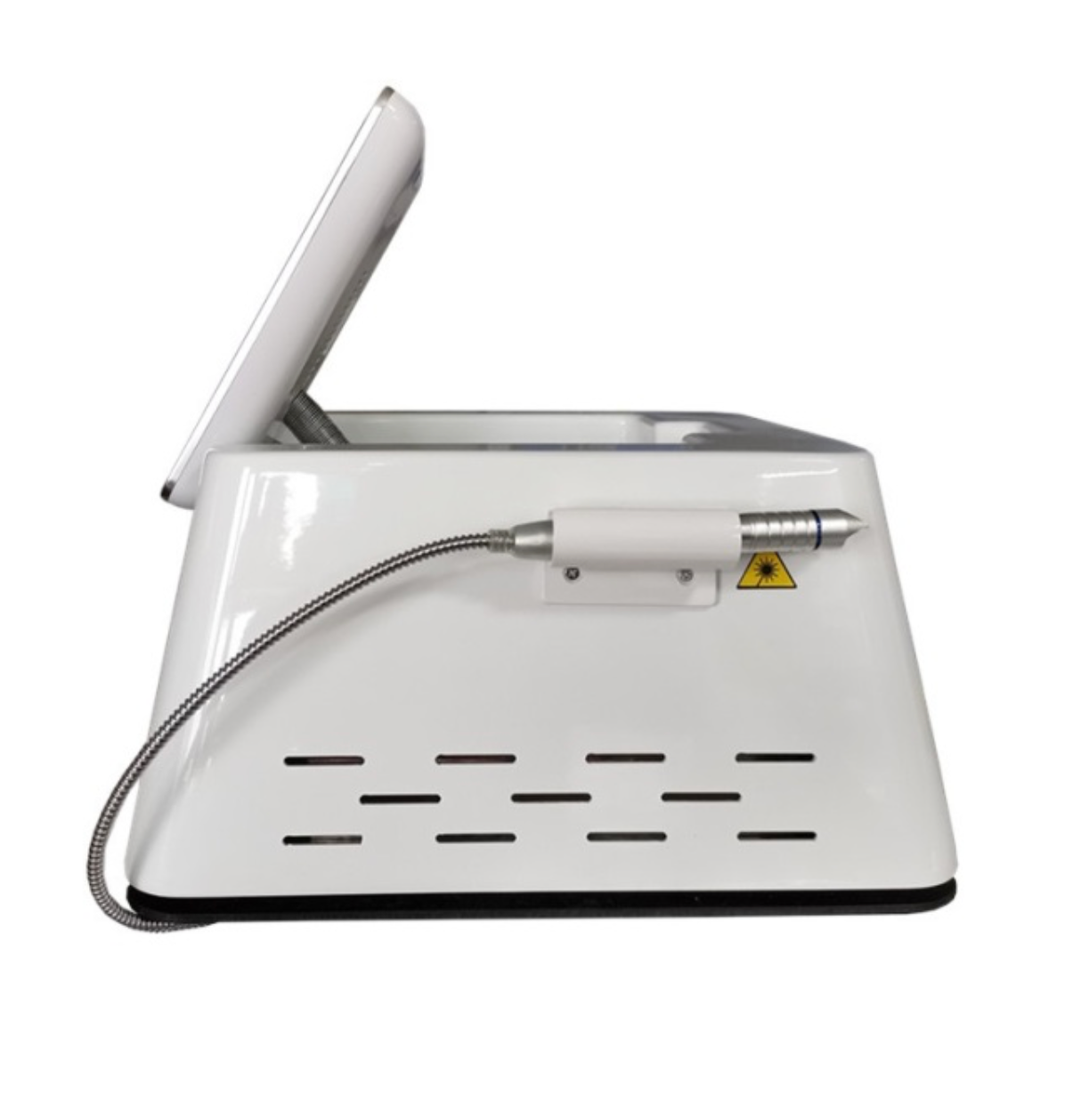

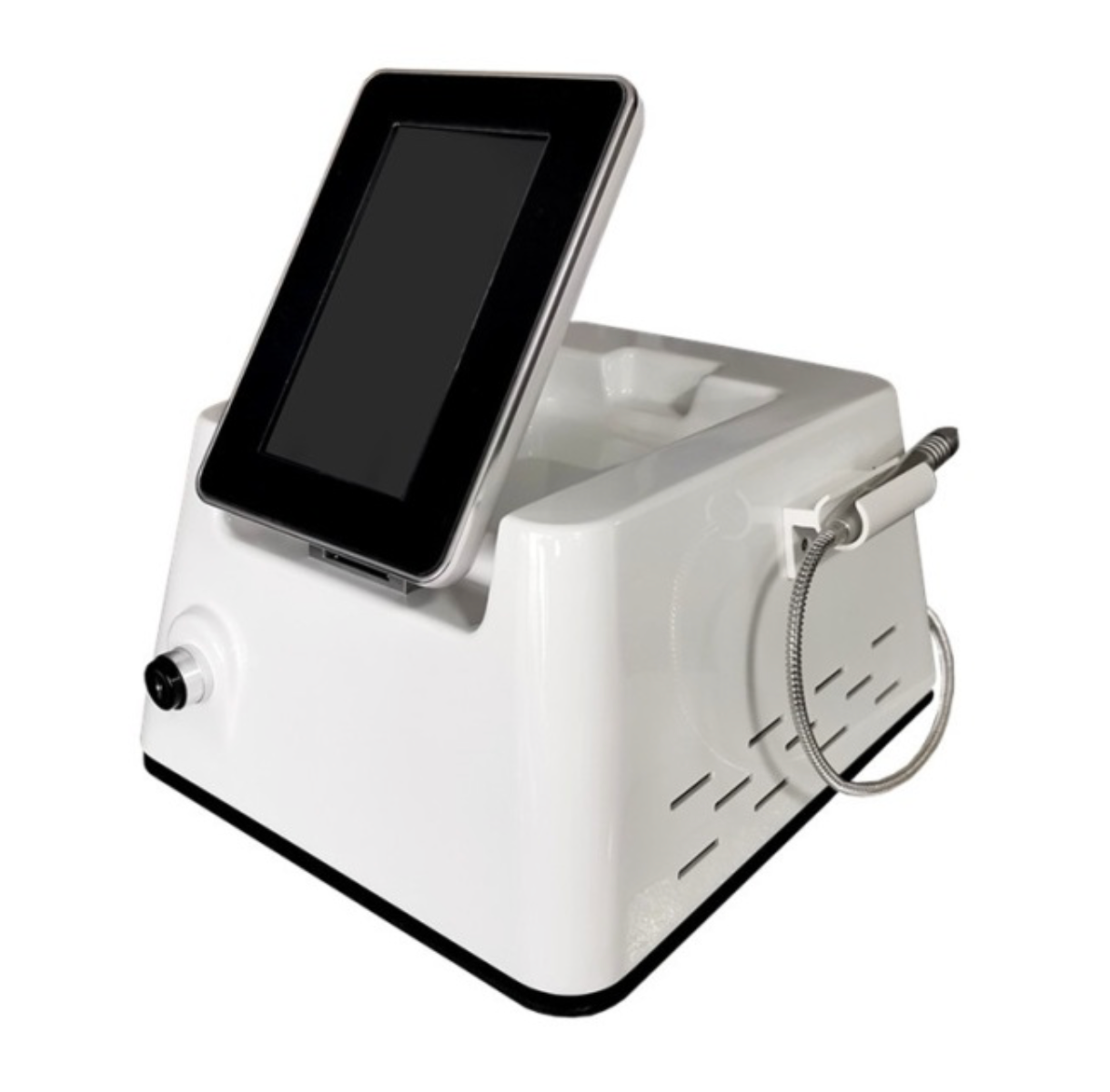

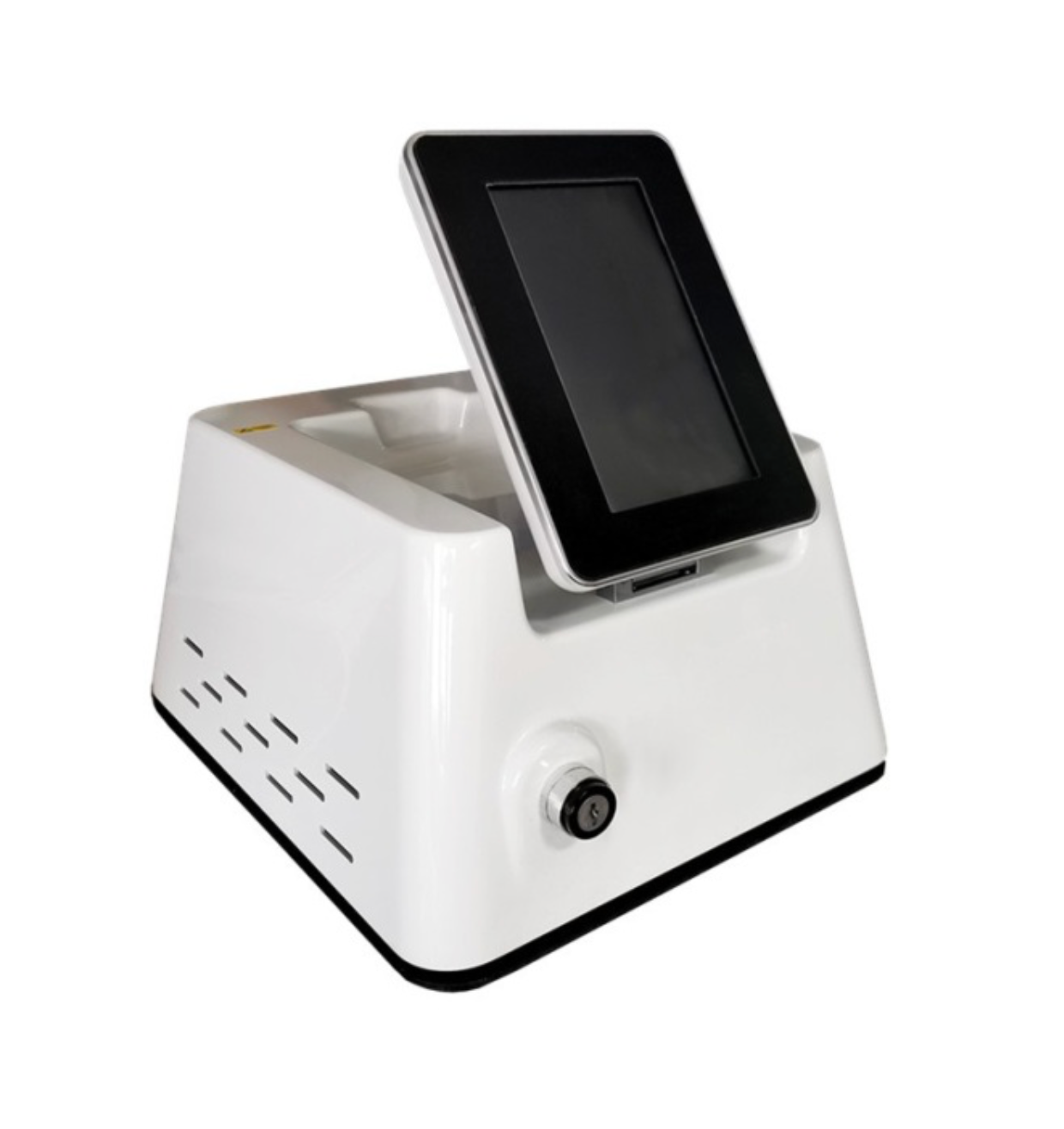

980nm laser equipment for varicose veins and capillaries removal
DESCRIPTION
Product Parameters
- Output: Fiber optic coupling
- Laser wavelength: 980nm
- Input: AC: 100-240V, 50/60Hz
- Output Power: 1-15W / 20W / 30W (options)
- Fiber length: 2m
- Pulse width: 15ms-100ms
- Operating mode: Touch screen
- Frequency: 1-5Hz
- Language: English or OEM customization
- Mode: Pulse mode

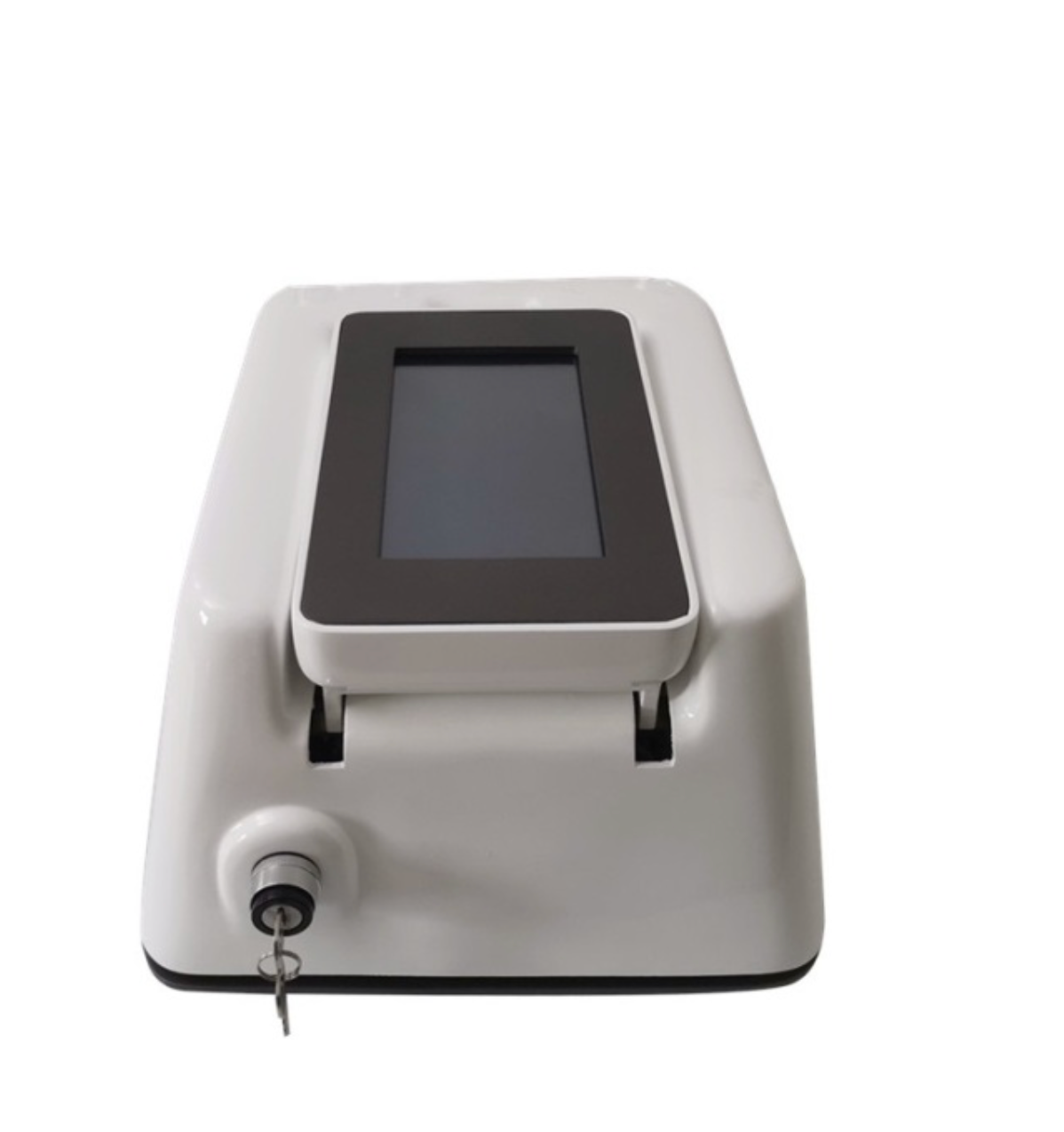

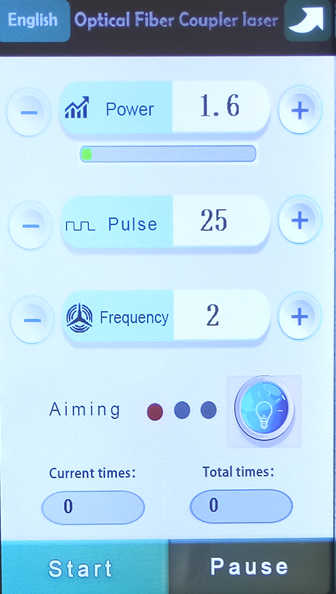

- Operation interface: 7.0 inch color touch screen LCD screen
- Aiming beam: 650nm±10nm laser diode, 5mW(max), adjustable brightness
- Light transmission system: Detachable fiber system, 200um(maximum) approved core size, SMA905 connector
- Cooling: Air Cooling
- Safety classification: Class I Type B
- Machine Dimensions: 350mm x 300mm x (185mm-345mm)

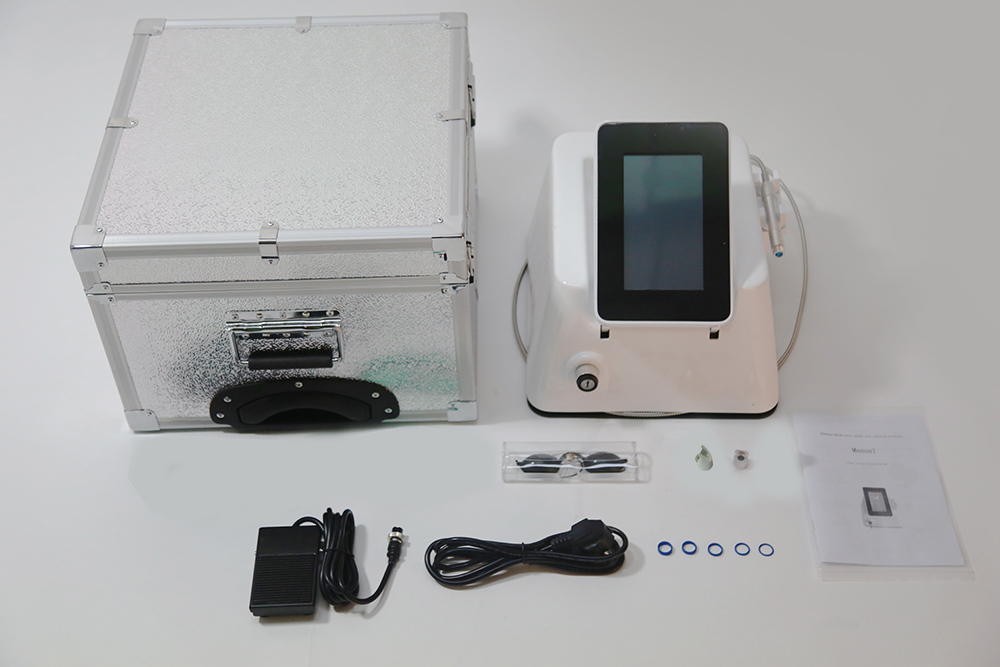

- Carrying case dimensions: 460mm x 440mm x 290mm
- Net/Gross Weight: 5kg / 10kg
Operating principle
-
Selective Absorption: The 980nm diode laser represents the optimal absorption spectrum for porphyrin vascular cells. The laser energy is absorbed, causing solidification and subsequent dissipation.
-

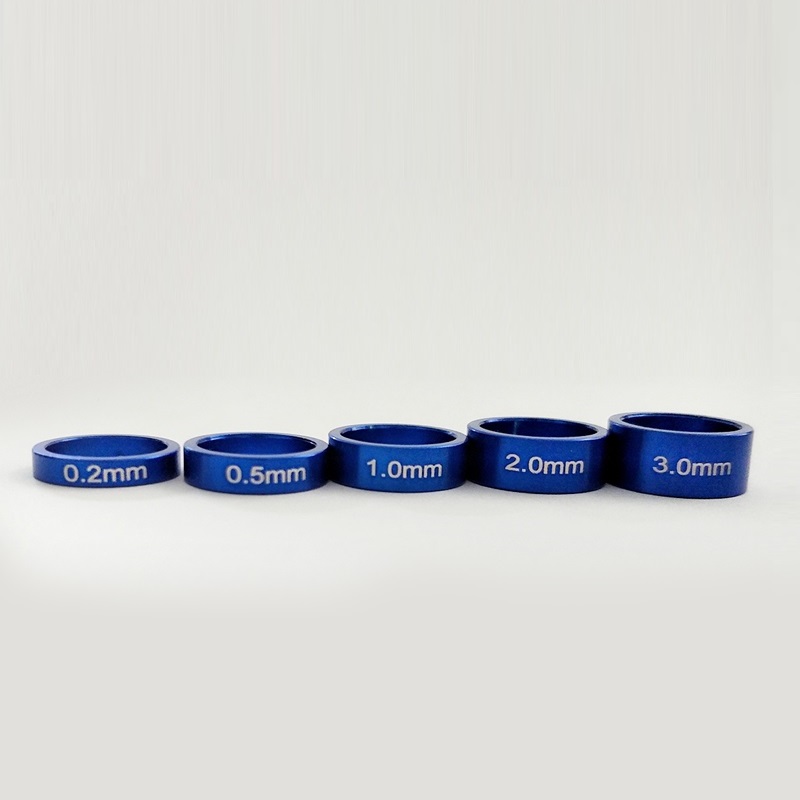

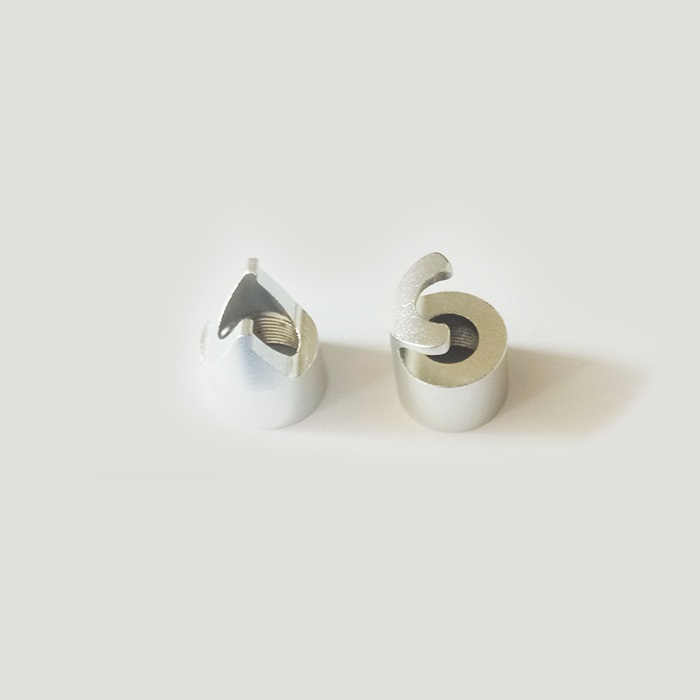

Targeted Treatment: Surpasses traditional laser treatments that cause diffuse redness. The professional design of the handpiece focuses the laser beam into a diameter of 0.2-0.5mm, allowing it to reach the target tissue without damaging the surrounding skin.
-
Collagen stimulation: During vascular treatment, 980nm laser stimulates the growth of dermal collagen, increases the thickness and density of the epidermis, hiding small blood vessels. The skin becomes more elastic and resistant.
-
Selective absorption by hemoglobin: Transcutaneous irradiation (1-2mm penetration) causes selective absorption in tissues by hemoglobin, the main target of the laser.
Main features of 980nm laser for blood vessel removal:
- Immediate effectiveness: Professional removal of blood vessels.
- Non-invasive: No need for needles or surgery.
- Targeted and safe: No damage to surrounding tissue, no scarring.
- Ease of use: Simple operation, no consumables and no time limit for treatment.

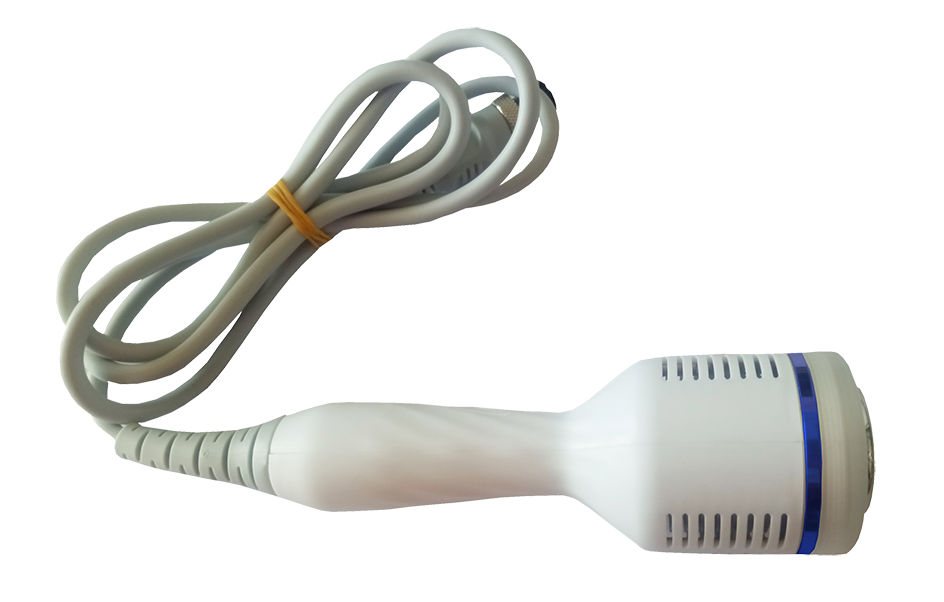

- Ice Compress Cooling: Dual use for comfort and safety.
- Overheat Protection: Advanced technology for long-lasting safety.
